19 Inch PLC Splitter Box Rack Mounted Fiber Optical Terminal Box

Brand Name : TTI

Model Number : RMF-PLC

Certification : ROHS, SGS

Place of Origin : Guangdong, China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T, , PayPal, Monthly settlement

Supply Ability : 5000 PCS/Week

Delivery Time : 3-5 days

Packaging Details : 5pcs/Case

Name : PLC Splitter Box

Structure : 19inch Rack Mounted

Type : 1*2/1*4/1*8/1*16/1*32

Material : Cold rolled steel

Height : 1U, 2U...

Color : Black, White

Contact Now

19 Inch PLC Splitter Box Rack Mounted Fiber Optical Terminal Box

19 Inch PLC Splitter Box Rack Mounted Fiber Optical Terminal Box

Description:

  • The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.
  • It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.
  • This PLC splitter box meet the National Standard of YD/T925-1997.
  • 1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.

Feature:

  • Small package volume
  • easy for management and suitable for various occasions.
  • Single mode and multi mode available
  • 1x2, 1x4 and 1x n customized splitters configuration available

Main technique index:

  • Size(mm):(L×W×H) 430*250*1U
  • Weight:2.4kg
  • Fiber radius of curvature:≥40mm
  • Added losses: no
  • Length of fiber coiled:≥1.6m
  • Maximum splitter capacity:SC maximum 1:32, FC maximum 2:16
  • Scope of temperature:-40°C~+60°C
  • Resistance to lateral pressure:500N
  • shock resistance:750N

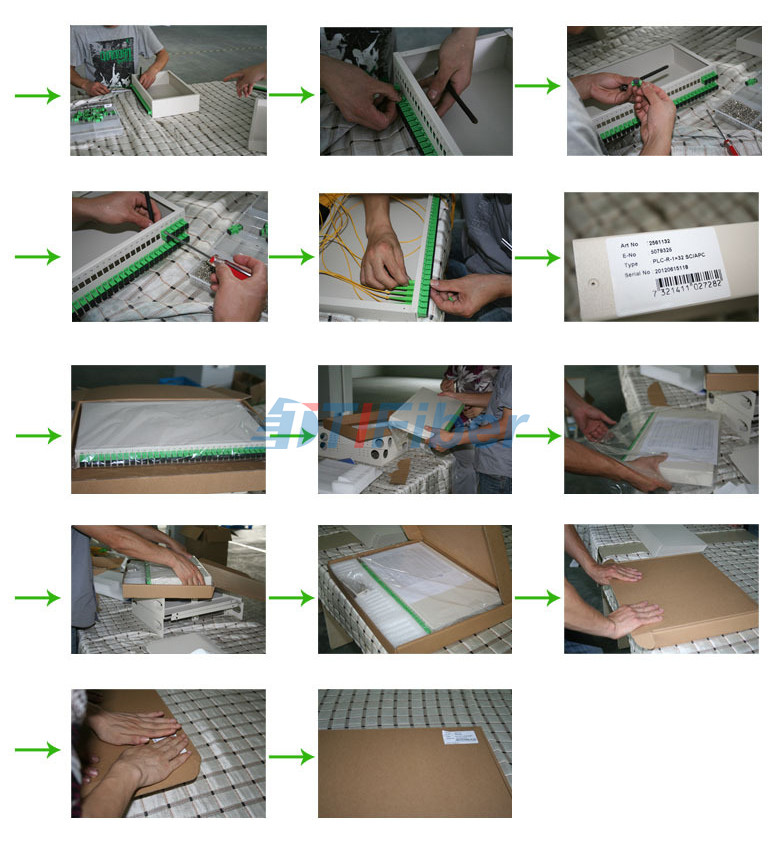

Package:

  • Body: 1 set
  • Installation ears:1 pair


Application:

  1. Widely used in FTTH access network
  2. Telecommunication networks
  3. CATV networks, LAN Network
  4. Data communications networks
  5. Local area networks
  6. Active device termination

Specification:

Type 1*2 1*4 1*8 1*16 1*32 1*64 2*2 2*4 2*8 2*16 2*32 2*64
Item
Insertion loss (dB) MAX 3.9 7.2 10.5 13.8 16.8 20.8 4.4 7.4 11 14.5 17.5 20.8
Uniformity (dB) MAX 0.5 0.6 0.8 1 1.3 1.8 0.6 0.8 1 1.5 1.8 2
PDL (dB) MAX 0.2 0.3 0.4 0.2 0.3 0.4
Operating Wavelength (nm) / 1260~1650
Return loss (dB) MIN 50(UPC),55(APC)
Directivity (dB) MIN 55
Operating Temperature (°C) / -40°C~85 °C
Storage Temperature (°C) / -40°C~85 °C

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

19 Inch PLC Splitter Box Rack Mounted Fiber Optical Terminal Box19 Inch PLC Splitter Box Rack Mounted Fiber Optical Terminal Box
