Outdoor 2-144 Core Single-Mode Fiber G652D GYTA Armoured G652D Outdoor Underground Fiber Optic Cable
1. Specification:

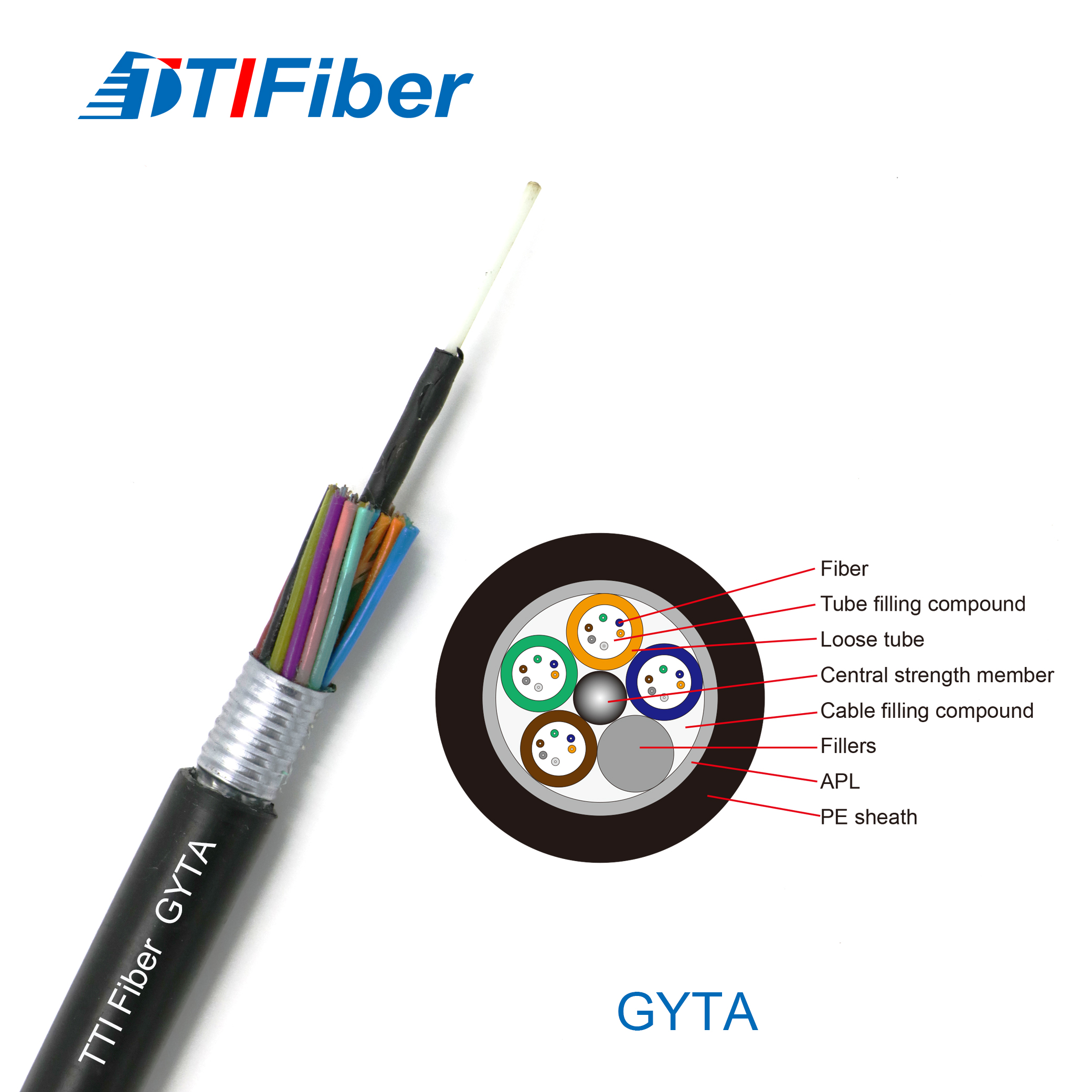

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.
| FIber count | 2-288 | Waterproof layer | Cable core filled with cable gel or water blocking tape, water blocking yarns. |
| Loose tube | colored fiber in loose tube, jelly-filled | Sheath | Polyethylene (PE) |
| Central strength member | Steel wire or FRP | Operation temp | -40°~+70° |
2. Feature:
* Metallic(non-metallic) strength member;
* Loose tube stranded;
* Gel silling;
* Polyethylene sheath outdoor cable for communication pirpose;
* Transportation Temp: -40℃~+70℃;
* Installation Temp: -5℃~+50℃;
* Operation Temp: -40℃~+70℃
* Permisson bent radius:
* Static: 10D; Dynamic: 20D
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber
Per Tube | Max No. of
(Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~30 | 9.7 | 76 | 6 | 5 | 1500 | 600 | 1000 | 300 |
| 32~48 | 10.7 | 90 | 8 | 6 | 1500 | 600 | 1000 | 300 |
| 50~72 | 11.6 | 110 | 12 | 6 | 2000 | 600 | 1000 | 300 |
| 74~96 | 13.0 | 135 | 12 | 8 | 2000 | 600 | 1000 | 300 |
| 98~144 | 15.1 | 190 | 12 | 12 | 2000 | 600 | 1000 | 300 |
4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
