4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath

Brand Name : TTI

Model Number : GYFY Fiber Optic Cable

Certification : CE

Place of Origin : Guangdong China

MOQ : Negotiable

Price : Negotiable

Payment Terms : We accept all online payments

Supply Ability : 10000 KM

Delivery Time : 5-8 Work Days

Packaging Details : Standard Package(Surport OEM/ODM)

Product Name : GYFY Fiber Optical Cable

Color : Black

Material : PE

Fiber Type : G652D

Number of Conductors : ≥ 10

Wavelength : 1310nm Or 1550nm

Strength Member : Glass yarn

Use : FTTX

Length : Customizted

Quality Control : 100% Test Before Shipping

Package : Wooden Ram

Contact Now

4 6 8 12 16 24 Core GYFY Duct PE Sheath Fiber Optic Cable

1. Specification:

The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Item	Fiber Optic Cable
Model Number	GYFY
Place of Origin	Guangdong, China
Brand Name	TTI
Number of Conductors	≥ 10
Application	Networking
Jacket	PE
Color	Black
Length	1km 2km 3km 4km
Strength member	Glass yarn
Packing	1-2km/drum
Fiber Type	G652D/G657A1/G657A2
Certification	CE/ROHS/ISO9001
Strength member	FRP
MOQ	1KM

2. Feature:

1. LAN Backbones
2. Networks with mixed indoor and outdoor cabling
3. Flooded duct
4. Premises distribution system

Fiber Type	Fiber attenuation(+20℃)				Band Width		Numerical aperture	Cut-off wavelength of optic fiber cable
Fiber Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Cut-off wavelength of optic fiber cable
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

3. Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

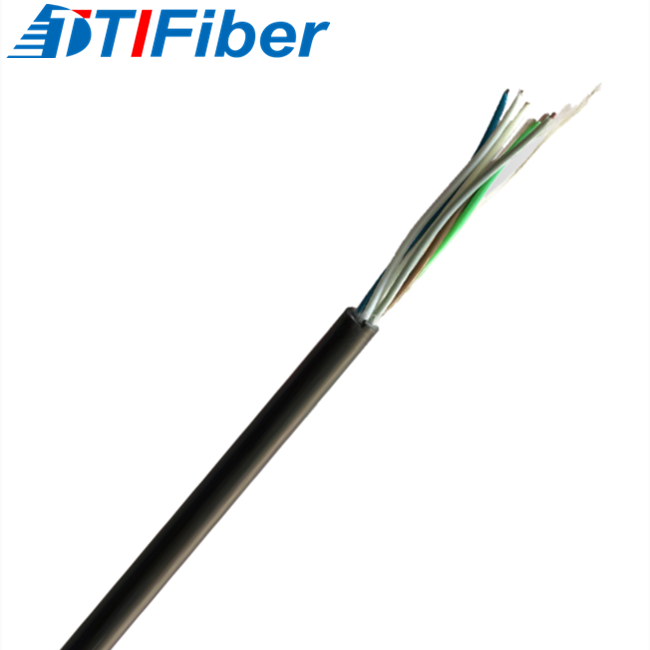

4. Product Picture:

4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all online payments .
