FTTH Use Single Mode Simplex LC/UPC to LC/UPC Fiber Optic Jumper Cable Patch Cord

Name: FTTH Use Single Mode Simplex LCUPC to LCUPC Fiber Optic Jumper Cable Patch Cord
Brand: TTIFIBER/OEM/ODM
Price: 1 USD

Quality FTTH Use Single Mode Simplex LC/UPC to LC/UPC Fiber Optic Jumper Cable Patch Cord wholesale

Brand Name : TTIFIBER/OEM/ODM

Model Number : LC-LC

Certification : CE, ROHS, SGS, ISO9001

Place of Origin : Guangdong, China.

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, PayPal

Supply Ability : 7000pcs/Day

Delivery Time : 2-24 working days

Packaging Details : 1pcs/PE bag

Connector : LC, SC, FC, ST, etc.

Ferrule End -face : UPC, APC, PC

Jacket : PVC, LSZH, OFNP, OFNR

Inner : Ceramic

Cable Length : 1M; 2M; 3M Etc., Or Customized

Cable Diameter : 0.9mm,2.0mm Or 3.0mm

Fiber type : Simplex and Duplex, G652D, G655

Insertion loss : ≤0.3dB

Material : PVC, LSZH, PVC/LSZH

Fiber count : Simplex or Duplex

Application : FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base station, For ODF internal link, For room equipment internal link, FTTH/Test equipments/TV/LAN/Telecommunication equipments

Contact Now

FTTH Use Single Mode Simplex LC/UPC to LC/UPC Fiber Optic Jumper Cable Patch Cord

1. Description

Fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.

Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

2. Specification

Product Name	Fiber optic patch cable
Connectors	LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

3. Product list

Boot

Connector

Fiber Type

Cable number

Ferrule

Connector

0.9mm

2.0mm

3.0mm

MTRJ

MPO

DIN

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Ribbon

APC

UPC

3M4M

.........

Customized

4. Features

1). Low Insertion loss

2). High return loss

3). Good Repeatability

4). Good Interchange

5). Excellent Environmental Adaptability

5. Application

1). Communication rooms

2). FTTH (Fiber to The Home)

3). LAN (Local Area Network)

4). FOS (fiber optic sensor)

5). Fiber Optic Communication System

6). Optical fiber connected and transmitted equipment

7). Defense combat readiness

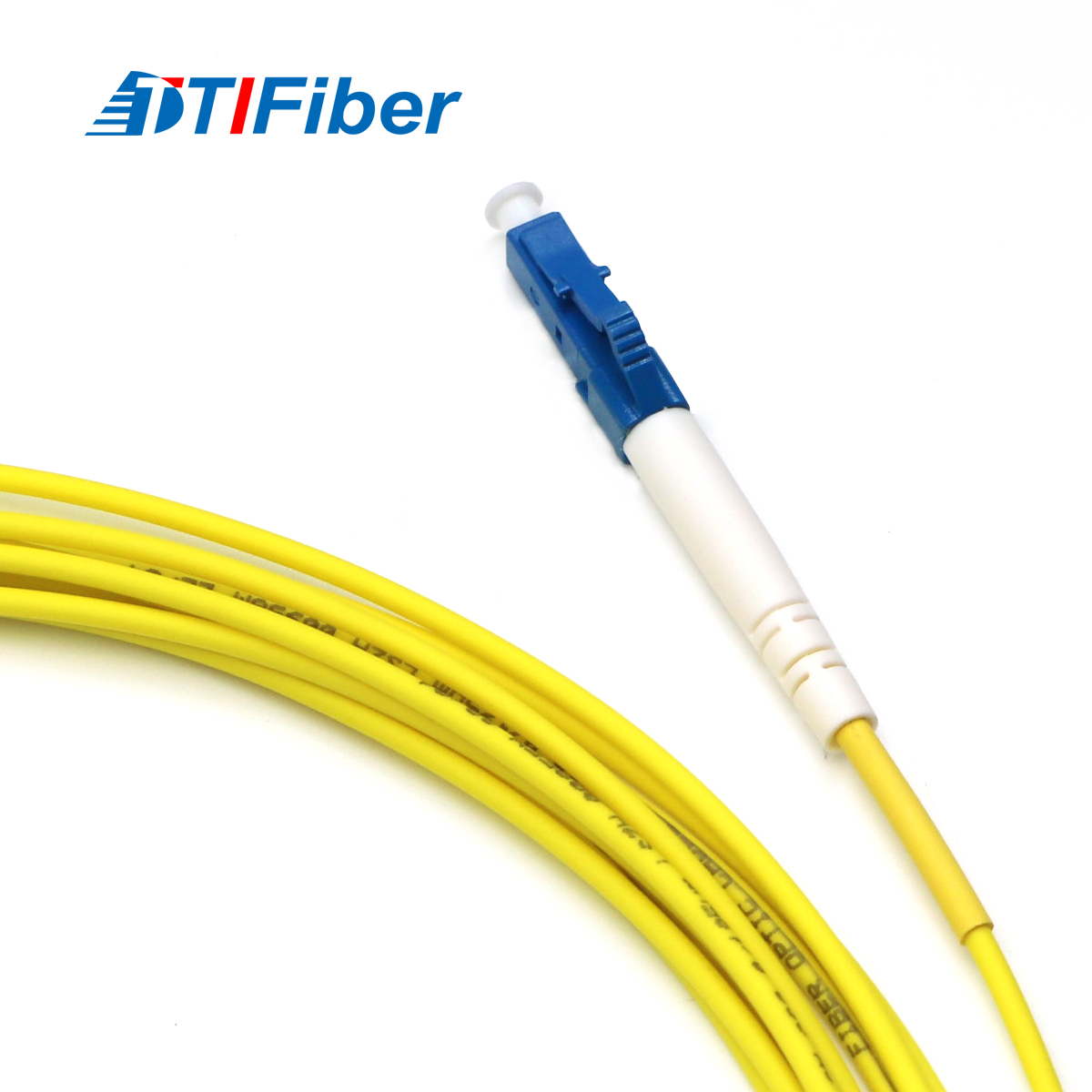

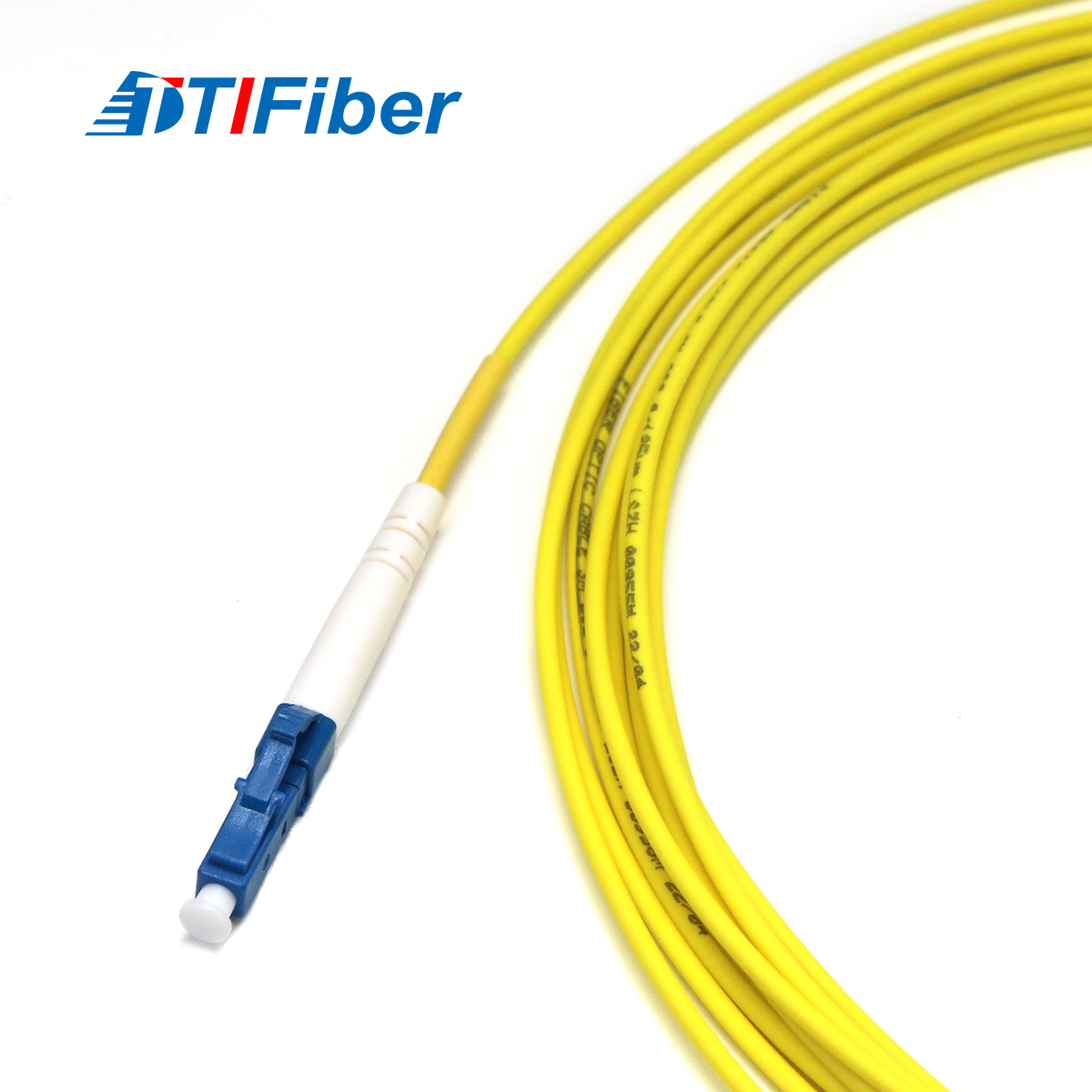

6. Product pictures:

FTTH Use Single Mode Simplex LC/UPC to LC/UPC Fiber Optic Jumper Cable Patch Cord

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price: Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.

4. What's the method of shipment?
We accept all shipment, such as Delievery,ocean transport, land transport, airport transport.
