Outdoor Aerial GJYXCH Drop Cable LZSH Single Mode 1 2 4 Core G652D G657A1 G657A2 FTTH Fiber Drop Optic Cable

Brand Name : TTI

Model Number : GJYXCH Fiber Optic Drop Cable

Certification : ROHS,CE,ISO14001,ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/A, D/P, T/T...

Supply Ability : 100000 meters

Delivery Time : 5-8 Work Days

Packaging Details : Standard Package(Surport OEM/ODM)

Product Name : GJYXCH Fiber Optical Drop Cable

Application : Outdoor Fiber Optic Cable

Color : Black

Material : LSZH PE

Fiber Type : G652D G657A1 G657A2

Use : FTTX

Length : Customizted

Quality Control : 100% Test Before Shipping

Package : Wooden Ram

Contact Now

GJYXCH Drop Cable LZSH Single Mode 1 2 4 Core G652D G657A1 G657A2 Outdoor Aerial FTTH Fiber Drop Optic Cable

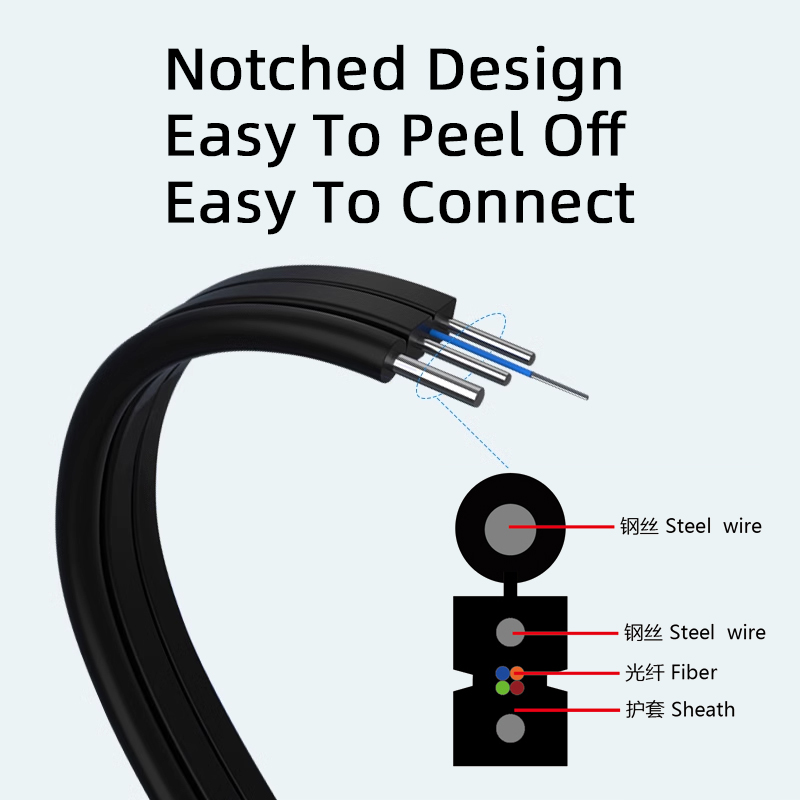

GJYXCH Drop Cable Construction / Cross Sectional Diagram

Outdoor Aerial GJYXCH Drop Cable LZSH Single Mode 1 2 4 Core G652D G657A1 G657A2 FTTH Fiber Drop Optic Cable
Technical Specification

Items

Specification

Fiber count

1/2/4F

Fiber

Out diameter(±5μm)

250

Outer sheath

Self supporting element

1.0mm Steel wire

Tensile element

2*0.4mm Steel wires

Sheath material

LSZH

Color

Black

Out diameter

5.1(±0.2)*2.0(±0.1) mm

Cable weight(kg/km)

22
Optical Fiber

Single-mode

Single-mode

Single-mode

Fiber type

G652D

G657A1

G657A2

(1310/1550nm)

(1310/1550nm)

(1310/1550nm)

Attenuation

Typical

0.36/0.22

0.36/0.22

0.36/0.22

Maximum

0.5/0.4

0.5/0.4

0.5/0.4

Zero Dispersion Slope

≤0.091 ps/km·nm2

≤0.092 ps/km·nm2

≤0.092 ps/km·nm2

Dispersion(1285~1340nm)

-3.5 – 3.5ps/(nm·km)

-3.5 – 3.5ps/(nm·km)

-3.5 – 3.5ps/(nm·km)

Mode field Diameter(@1300nm)

9.3±0.4 µm

8.8±0.4 µm

8.8±0.4 µm

Cutoff wavelength cable(nm)

≤1260 nm

≤1260 nm

≤1260 nm

Min bend radius(mm)

16 mm

10 mm

7.5 mm

Cladding diameter(µm)

125±1.0

125±1.0

125±1.0

Mechanical and Environmental Performance of the Cable

Mechanical properties

Installation

Operation

Tensile strength

300N

600N

Min bend radius

15mm

30mm

Crush resistance

2000N/100mm

The mechanical properties of other optical fibers

and cables shall meet international standards of IEC 60794.

Fiber Optical Cable bending radius

Transportation temperature

-20℃~+60℃

Storage temperature

-20℃~+60℃

Installation temperature

-20℃~+60℃

Operation temperature

-20℃~+60℃

Outdoor Aerial GJYXCH Drop Cable LZSH Single Mode 1 2 4 Core G652D G657A1 G657A2 FTTH Fiber Drop Optic CableOutdoor Aerial GJYXCH Drop Cable LZSH Single Mode 1 2 4 Core G652D G657A1 G657A2 FTTH Fiber Drop Optic Cable
